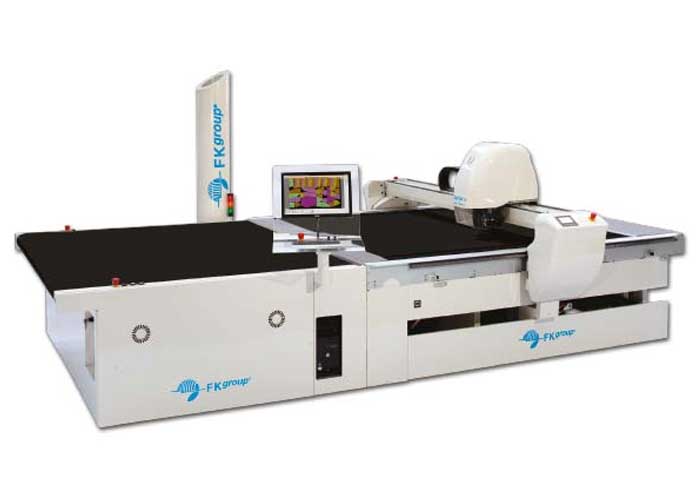

Automatic conveyor cutting system provided with 6cm Cutting Head specially designed for cutting denim but also suitable for other types of fabric (lycra, cotton etc).
TopCut super Jeans is a new project capable of accelerating working cycles through both speed and productivity.
Applying a mix of technical characteristics and innovative materials enables to reach cutting performances never achieved before.
Evo Cut: the simple and intuitive Software makes all cutting parameters setting fast and safe.
Eco Power vacuum system that guarantees considerable power saving.
Patented high speed sharpening system.
Mectronics Blade Sense: automatic knife deflection correction.
Patented multi-type knife lubrication system (wax, silicon oil or soapy water)
Vortec: refrigerated air blade cooling device
Remote technical assistance, via WEB, that ensures just in time total and constant support to the operator, thus allowing working in complete peace of mind.

Categories: , Product ID: 482

Product Description

Working Area (cm)
Height x Length
180×170 200×170
Overall dimensions (mm)
Length x Widthx Height
4700x2900x2200 4700x3100x2200
Weight (Kg) 2880 2960
Installed Power (kW) 13
Average Consumption (kW) 5,9
Power Supply Tension 400V10%
Max compressed lay heigth (cm) 6
