topcut689

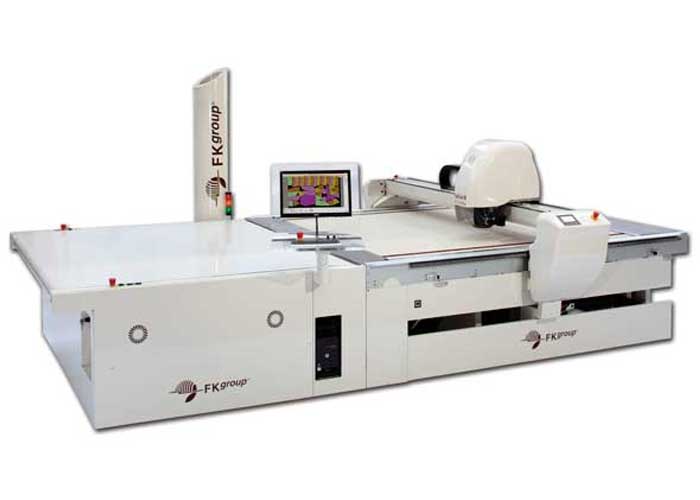

Automatic conveyor cutting system provided with 6 – 8 -9cm Cutting Head for all types of production.
TopCut is a new project capable of accelerating working cycles through both speed and productivity.
Applying a mix of technical characteristics and innovative materials enables to reach cutting performances never achieved before.
Evo Cut: the simple and intuitive Software makes all cutting parameters setting fast and safe.
Eco Power vacuum system that guarantees considerable power saving.
Patented high speed sharpening system.
Fast Revolution: allows cutting flexibility for all material types.
Mectronics Blade Sense: automatic knife deflection correction.
Vortec: refrigerated air blade cooling device
Remote technical assistance, via WEB, that ensures just in time total and constant support to the operator, thus allowing working in complete peace of mind.

Categories: , Product ID: 479

Product Description

Working Area (cm)
Height x Length
180×170 200×170 220×170 180×240 200×240 220×240
Overall dimensions (mm)
Length x Width
x Height
4700×2900
x2200
4700×3100
x2200
4700×3300
x2200
5600×2900
x2200
5600×3100
x2200
5600×3300
x2200
Weight (Kg) 2880 2960 3040 3220 3300 3380
Installed Power (kW) 13 13 13 16 16 16
Average Consumption (kW) 5,9 5,9 5,9 7,5 7,5 7,5
Power Supply Tension 400V10%
Max compressed lay heigth (cm) 6/8/9
