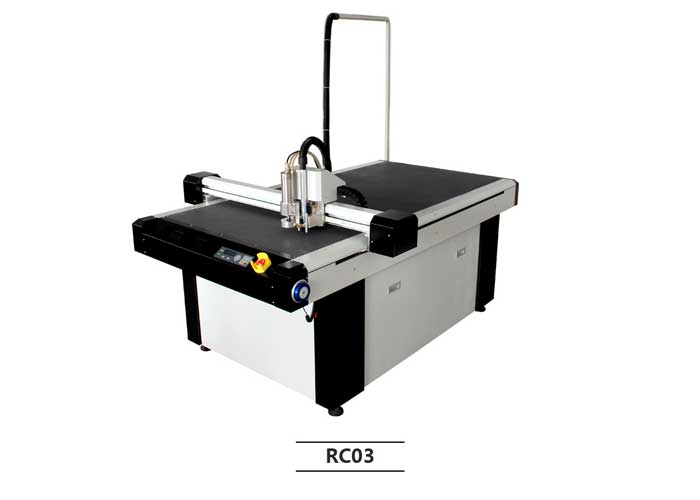

Product Description

Characteristics Be connected to any kind of apparel CAD software.Working with computer synchronously, transmit speedily
Cutting method Multi-diameter router(Replaceable)special tungsten carbide blade, plotting
Knife handle diameter 3.175mm/4mm/6mm
Max.cutting speed 800mm/s(depends on the kinds of material)
Cutting material PVC board, Acrylic board, Density board, Plastic board etc. Kraft paper, Ivory board, Sulphite paper.
Cutting thickness up to 10mm
Working accuracy +/-0.1mm
Repeated accuracy +/-0.05mm
Main axis frequency motor 1200W
Max.Spindle speed 30000(r/min)
Fixing method Individual Section Vacuum suction
Command HP-GL compatible format
Numerical control panel Chinese-English LCD touch screen
Transmission system Servo motor driver high precise straight rail synchronous belt
Interface Ethernet port
Power supply AC380V+/-10% 50HZ / 60HZ
Fuse 10A,30A
Effective Cutting Area 1500mm*900 mm
Machine size 2220mm*1520mm*1300mm
