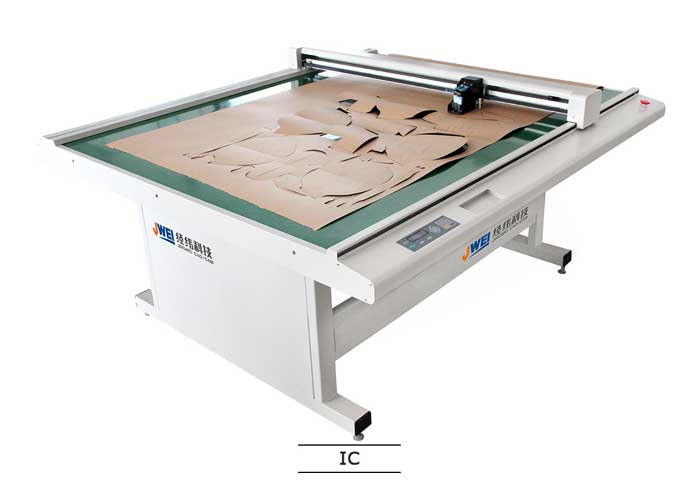

Product Description

Model No. IC-1872A IC-1863A
Characteristics Working with computer synchronously, transmit speedily
Working method Intelligent double print, automatic cutting
Plotting speed vector 1200mm/s
Dot matrix 40-120 square meter
Max. Speed 1200mm/s
Paper requirement ?2mm
Cutting material Kraft paper, Ivory paper, Drawing paper, Sulphite paper etc.
Intelligent Work Origin automatic memory, Temporary origin
Ink box/Knife type Ink box/special tungsten carbide blade
Fixing method Vacuum suction
Repeated accuracy ?0.1mm
Software resolution 0.025
Print Port Ethernet port
Command HP-GL compatible format
Print Port Imported straight rail, synchronous belt Digital servo motor,straight rail,

synchronous belt

Numerical control panel Chinese-English push button panel
Power supply AC 220V±10% 50HZ/60HZ 2.5KW
Fuse 30A,6A
Paper feed method Manual rear-mounted feed paper
Intelligent protection Ultra width alarm,Ultra length alarm,

protection alarm

Ultra width alarm,Ultra length alarm,

over load alarm, protection alarm

Effective cutting area 1500mm×1200mm 1500mm×900mm
Machine size(mm) 1850x1600x1000 1850x1330x1000
Printing and cutting all-in-one machine.
High performance integrated circuit controller.
Intelligent double print, automatic cutting.
Advanced transmission parts with high speed and precision.
Patent machine, steady performance, safety&reliability, using in wide range.
Be widely used in apparel,shoe-making and bags and suitcases industries.
