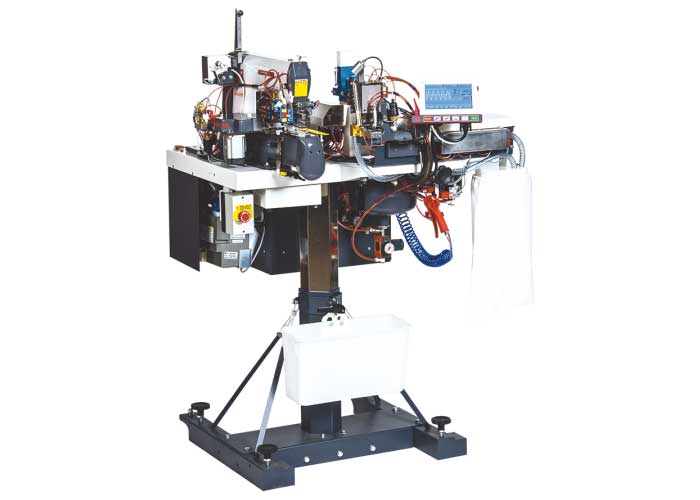

4650-ev9r

Equipped with a completely new 7 coloured touch screen panel, which is now totally user-friendly (the easiest-to-use ever made), new presser foot, new loop aligner system, new electronic and new software fully in-house developed by Vi.Be.Mac.

Categories: , Product ID: 580

Product Description

Electronics Features

New 7″ Colored Super fast touch screen panel;
New CPU assures a much better software management, a better seam quality, easier adjustments and patterns, more precision, more customizable and more fashion options;
Updates through USB or Internet (remote control);
Preview of new patterns visible on the screen;
Error History Reporting;
Possibility to work without the touch Screen Panel in case of breakdown;
Auto-diagnostic system to avoid errors;
Control KEY to allow the machine manager ONLY to change the unit parameters (operator will not be able to sabot/change anything);



Mechanical Improvements

New 400W motors for the X & Y movements;
New presser foot with extra pressure and less flexure, besides lower barycenter;
Counter-weight device to counterbalance the presser foot thrust and keep it always the right position – Less usury of X&Y carriage;
New thread wiper to facilitate the needle threading;
New LOOP ALIGNER SYSTEM to avoid the loop mispositioning on the fabric, especially for the folded tails (now always aligned);
